In this
informative article we will discuss about
V-engines and their types, diagram, pros and
cons in detail.
What is a V-Engine?
A V engine is a
type of internal combustion engine. It
has two sets of cylinders arranged in a
'V' shape. They are angled between 60
and 90 degrees. They are usually placed
over the crankshaft.
V engines have
even number of cylinders. Example 2, 4,
6, or 8. In simple inline engines,
cylinders are in a straight line. In V
engines the design is more complex. The
V engine takes up less space. Here more
cylinders can be added. This helps to
boosts the engine¡¯s torque, horsepower,
and capacity.
¡¡
¡¡
¡¡
¡¡

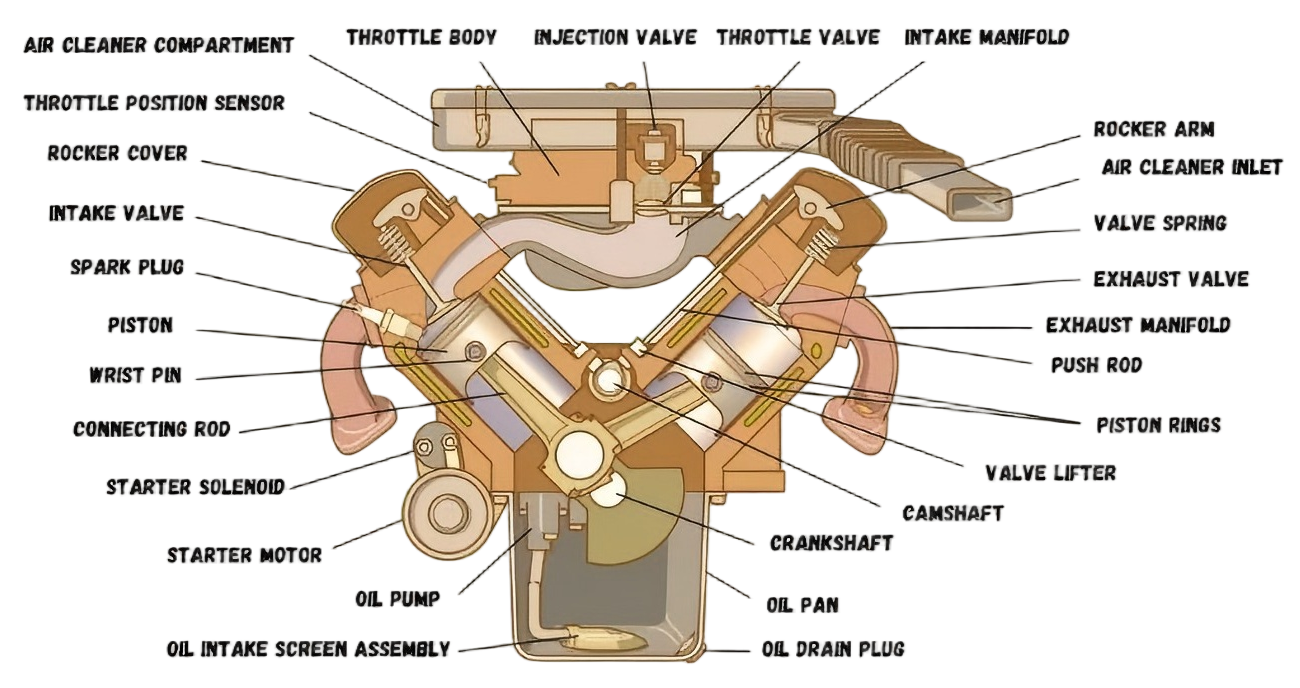

What Are The Main Parts
of V Engine?
¡¡
Below are
the main components of a V
Engine Construction:
1
Air cleaner
2
Engine manifold
3
Spark plug
4
Fuel injector
5
Injector rocker arm
6
Injector control shaft
7
Injector rack
8
Camshaft
9
Push rod
10
Exhaust valve
11
Cylinder head
12
Cylinder liner
13
Piston
14
Piston rings
15
Piston cooling oil pipe
16
Connecting rod
17
Crankshaft
18
Crankshaft counterweight
19
Crankcases
20
Oil pan and oil level
gauge
21
Water inlet jumper and
manifold
22
Starter motor
A V engine is
shorter and wider than an inline
engine, which is common for
engines with less than six
cylinders. The difference gets
bigger as more cylinders are
added.
The length
difference between an H-twin and
a straight-twin engine is small,
but V8 engines are much shorter
than straight engines. Compared
to the less common flat engine,
a V engine is taller, narrower,
and has a higher center of mass.
Engines
with fewer cylinders have
different balances based on
firing intervals, crankshaft
counterweights, and balance
shafts. In V engines, two
cylinders from opposite banks
often share crankpins with an
offset between them.
¡¡
¡¡
¡¡
¡¡
Working of a V-Engine
¡¡
The
gasoline-powered four-stroke
engine and the V engine work in
a similar way. In a V engine,
air and fuel are drawn into the
cylinders, where the gas is then
compressed and ignited.
¡¡
The
combustion in the closed,
compressed chambers creates a
lot of pressure. This force is
transferred to the pistons,
pushing them downward.
¡¡
The
pistons then move upward to
expel the accumulated gas. This
process repeats in a cycle,
causing the crankshaft to rotate
in a circular motion. The cycle
happens in different cylinders
at different times to keep the
power delivery smooth.
¡¡
¡¡
¡¡
¡¡
What Are The Main Types
Of V-Engines?
¡¡
V-engines are
classified into many types based
on the cylinder that is used.
Following are the main types of
V-Engines:
¡¡
¡¡

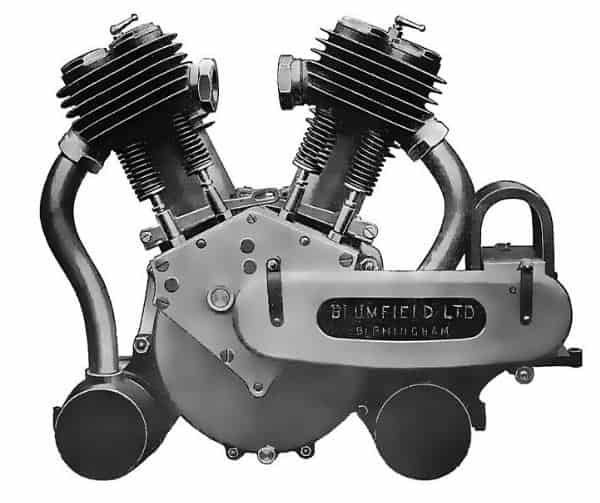

V2 Engine
V2
engines, also called
V-twin engines, have two
cylinder chambers and
take up less space due
to their small size. In
1889, Daimler
Stahlradwagen introduced
the V engine¡¯s working
principle in their cars.
Today, these engines are
commonly used in
motorcycles because of
their compact design.

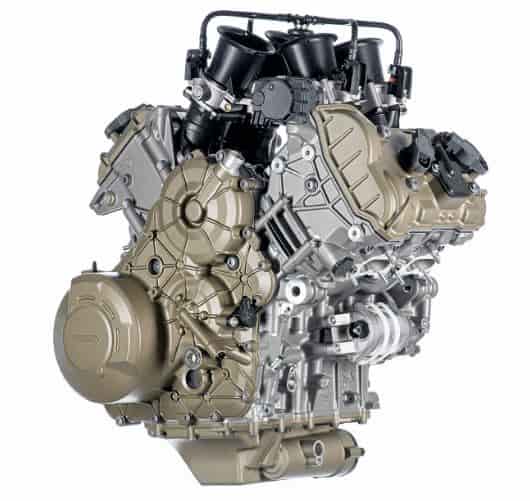

V4 Engine
V-twin engine is rarely
used in cars because of
complex design. It is
less common than other
types of engine.
A
V4 engine has two pairs
of cylinders. They are
connected to the
crankshaft. Four
cylinders are arranged
at 90 degrees. This
boost performance. Its
design is highly complex
and costly to
manufacture. It runs
smoother in terms of
power and rigidity
compared to an inline-4
(I4) engine.

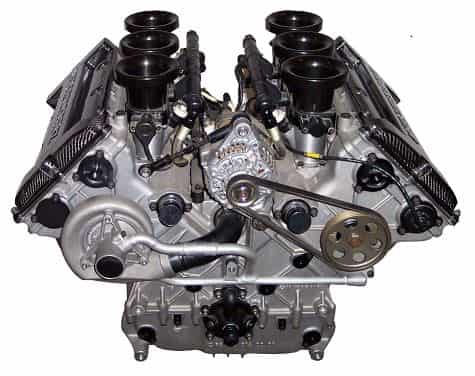

V6 Engine
The V6 engine is the
most popular
six-cylinder
arrangement. It has two
sets of three cylinders
attached to the
crankshaft. They are
attached at an angles of
60, 90, or 120 degrees.
It¡¯s smaller, lighter,
and more compact than V8
and V12 engines. It
offers better fuel
efficiency and reduced
vibration.
Due to their space
efficiency and improved
aerodynamics, V6 engines
are commonly found in
sedans in the United
Arab Emirates. Starting
in Grand Prix 2022, F1
cars are only allowed to
use turbocharged V6
engines.

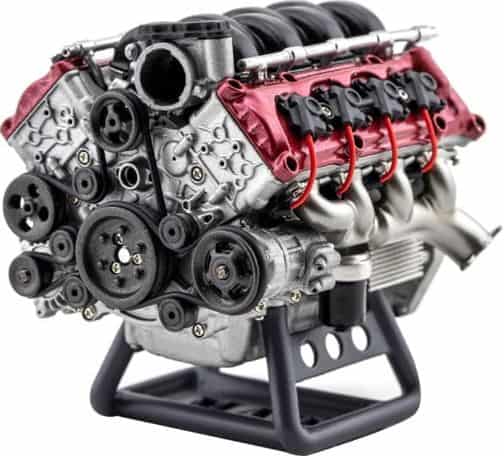

V8 Engine
In
1903, engineers
developed V8 engines
following the success of
V2 engines. A V8 engine
has 8 cylinders. They
are arranged in two sets
of four. They are joined
at a 90-degree angle by
a crankshaft.
This engine is compact
and lightweight. It is
known for delivering
high combustion power.
This allows cars to
accelerate quickly.
Thanks to two cylinders
always powering the
stroke. V8 engines are
commonly used in premium
and exotic vehicles.
This helps to reduce
engine compartment size
and improve driving
efficiency.

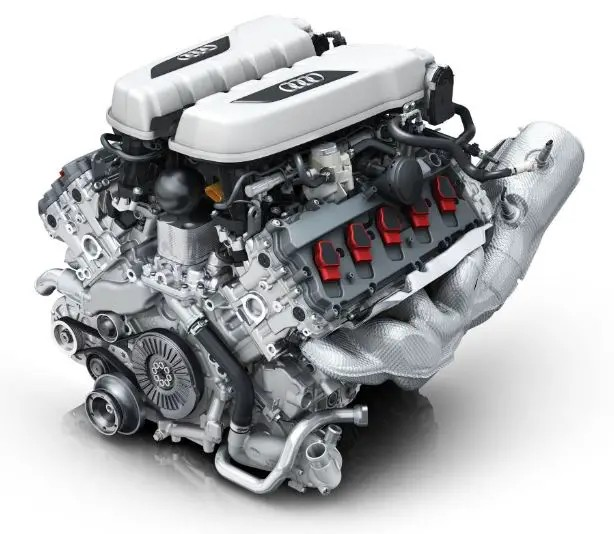

V10 Engine
A
V10 engine is a
ten-cylinder engine. Two
banks of five cylinders
are arranged in a V
shape around a single
crankshaft. It is less
common than V8 or V12
engines.
V10 engines are
typically used in sports
cars and
high-performance
vehicles. They are more
practical than inline
10-cylinder engines. The
first V10 diesel engines
were made in 1965. The
first V10 petrol engine
debuted in the Dodge
Viper in 1991.

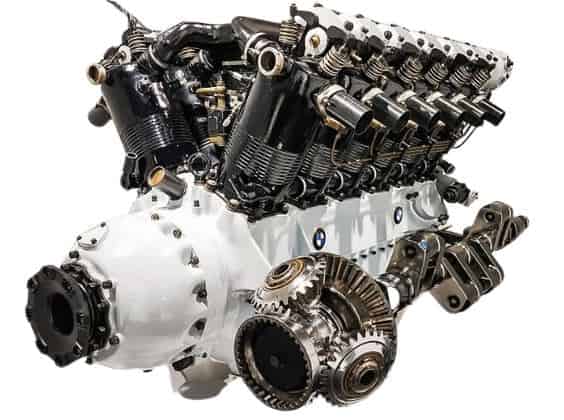

V12 Engine
The V12 engine is one of
the most powerful in the
automotive industry.
They also have cylinders
typically arranged at a
60-degree angle for
better balance.
These engines are used
in ships, airplanes,
military vehicles, and
other high-power
applications because
they generate the most
horsepower.
V12 engines differ from
V8 engines in design,
shape, and performance.
The V12 offering more
power due to its ability
to handle higher
volumes. The Rolls-Royce
Phantom-III was the
first commercial vehicle
to use a V12 engine.

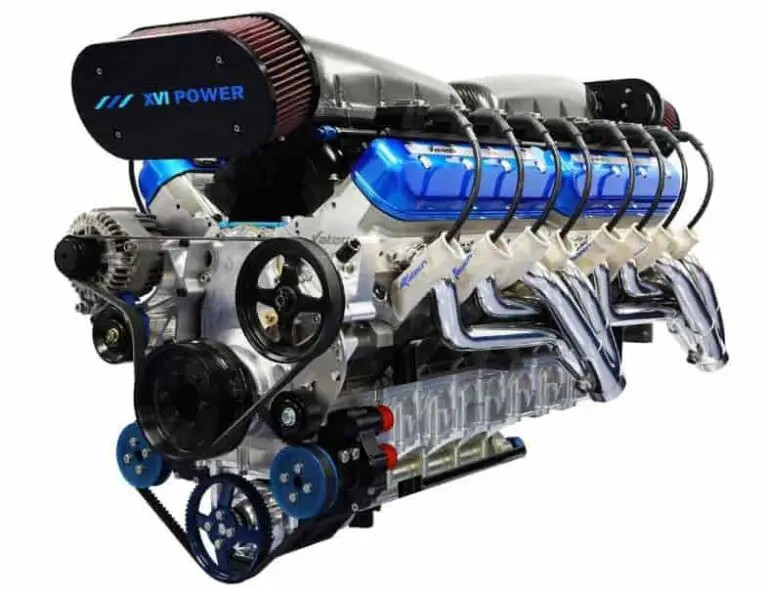

V16 Engine
A
V16 engine is a piston
engine. It has two banks
of eight cylinders
arranged in a V shape
around a single
crankshaft. It less
common than V8 and V12
engines. Most V16
engines have a 45-degree
bank angle. The first
use of a V16 engine was
in the 1910 Antoinette
VII experimental
aircraft. Today, they
are mainly found in
railroad locomotives,
marine vessels, and
stationary power
generators.

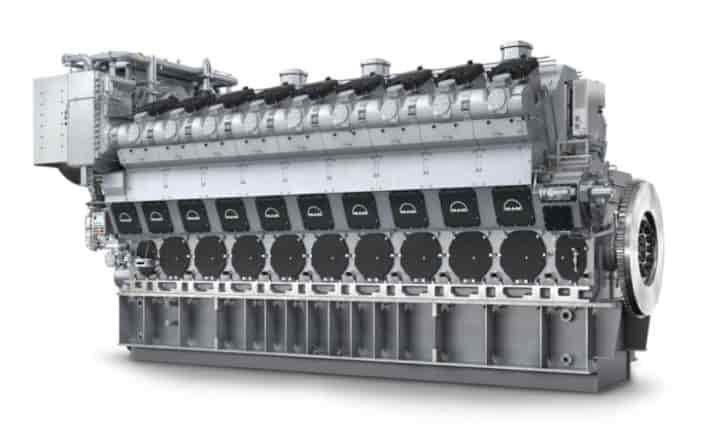

V18 Engine
A
V18 engine has two banks
of nine cylinders
arranged in a V shape
around a single
crankshaft. This unique
setup is mainly used in
large, low-speed diesel
engines.

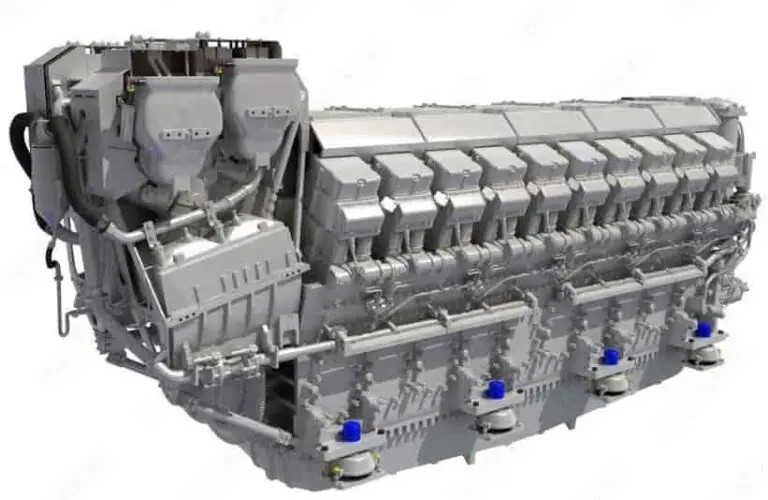

V20 Engine
A
V20 engine is a piston
engine with two banks of
ten cylinders arranged
in a V shape around a
single crankshaft. Large
diesel V20 engines are
used in various
applications, including
locomotives, haul
trucks, electric
generators, and marine
engines.
V22 Engine
The V22 engine features
a V-shaped design with
22 cylinders arranged in
two banks. This layout
provides a compact
structure while
delivering high power
output.

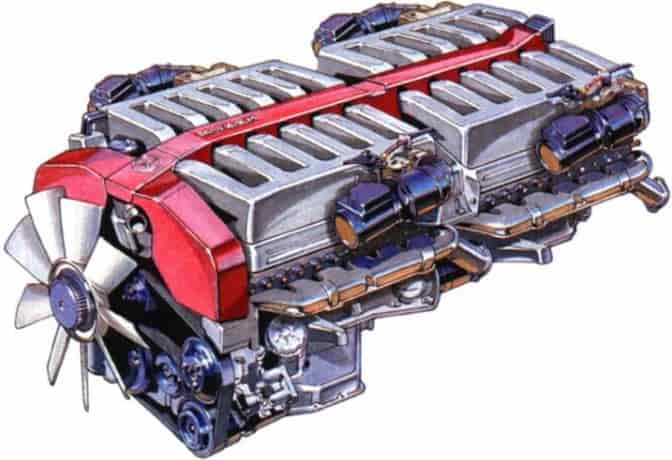

V24 Engine
A
V24 engine has two banks
of twelve cylinders
arranged in a V shape
around a single
crankshaft. In the early
1930s, the V24 engine
powered the Macchi
M.C.72 aircraft, which
competed in the
Schneider Trophy air
races of 1931.
¡¡
¡¡
¡¡
¡¡
Pros And Cons Of
V-Engine
¡¡
ADVANTAGES
DISADVANTAGES
Wider
Applications:
Suitable for
trucks,
motorbikes,
military
vehicles, and
airplanes.
Complex
Design:
Difficult for
automakers to
develop due to
intricate design
and assembly.
Superior
Aerodynamics:
Compact size
improves
aerodynamics.
Cooling
Problems:
Cooling issues
are a
significant
drawback.
Increased
Power
Transmission:
Smaller
crankshafts
transmit more
power to the
flywheel.
Increased
Weight:
Additional parts
add to the
engine¡¯s weight.
Higher
Torque:
Better
performance on
tough terrain.
Higher Cost:
More
expensive
compared to
other engines,
making vehicles
with V engines
considered
luxurious.
Variety of
Sizes:
Available in
sizes from two
to twenty-four
cylinders.
Less Fuel
Efficiency:
Generally less
fuel efficient
than other
engine types.
Reduced
Vibration and
Noise: Less
vibration and
noise compared
to some other
engine layouts.
¡¡
¡¡
¡¡
¡¡
¡¡
What Are The Main
Differences Between
Inline and V-Engine?
¡¡
Aspect
Inline Engine
V
Engine
Efficiency
Typically more
efficient than V
engines of the
same size.
Less efficient
compared to
inline engines
of the same
size.
Complexity
Generally
simpler and
easier to
maintain.
Typically more
complex and
difficult to
maintain.
Size and Shape
Long and narrow;
often mounted
transversely in
small cars.
Compact design.
Cooling
Can be more
challenging to
cool, especially
in air-cooled
engines.
Generally easier
to cool.
Center of
Gravity
Low center of
gravity due to
its wide and
flat layout.
Higher center of
gravity compared
to inline
engines.
Camshafts
Requires half
the number of
camshafts as a V
engine when
using overhead
cams.
Requires more
camshafts
compared to
inline engines
with overhead
cams.
Manufacturing
Costs Often
lower
manufacturing
costs compared
to V engines.
Can have higher
manufacturing
costs compared
to inline
engines.
Vibration
Generally less
vibration-prone.
More
vibration-prone
compared to
inline engines.
¡¡
¡¡
